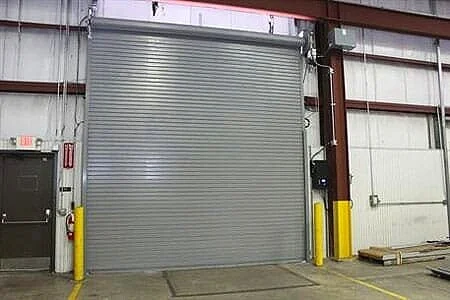

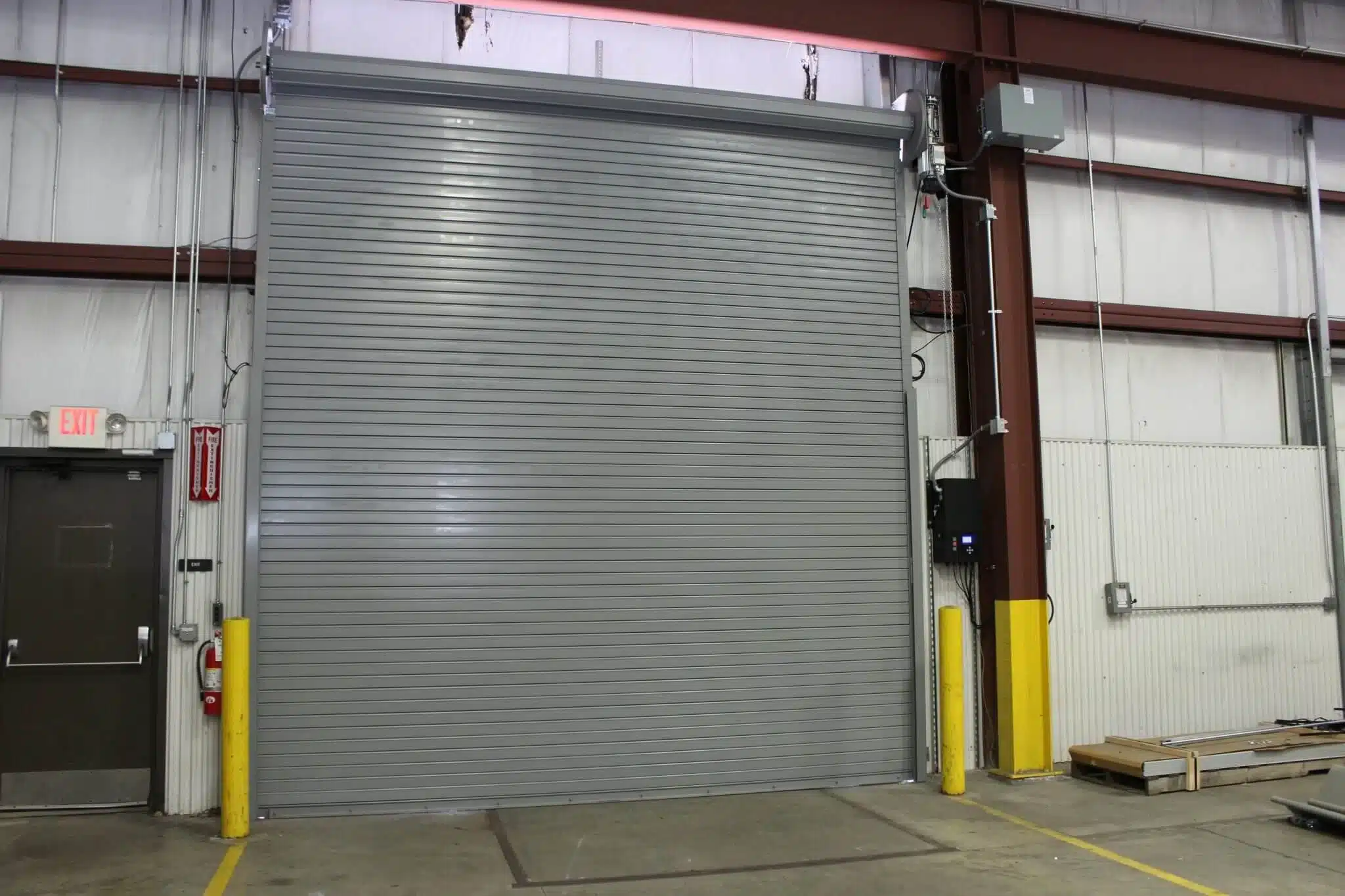

HIGH-CYCLE PERFORMANCE COMMERCIAL DOOR

Extreme 300 Series

HIGH-CYCLE PERFORMANCE COMMERCIAL DOOR

  • Door: Reliably high cycle life with an intelligent controller

  • Grille: Visual access, ventilation and high cycle life with an intelligent controller.

  • Plug and Play

  • Apex SmartController

  • Quiet and compact direct drive.


OVERVIEW

Overview

Cycles
300,000 maintenance free cycles, to be exact. The door's springless design adds to its longevity, with the only true maintenance being daily operation checks.

Intelligence
This door features the new Apex SmartController - our first intelligent panel that communicates status and error messages.

Speed
This door performs at an opening speed of up to 24 inches per second.

Energy Efficiency
The insulated curtain comes complete with our patented sealing system with thermally broken guide assemblies and a lintel seal that significantly decreases air infiltration to less than 0.3 cfm/ft2.

Smooth Operation
The compact, direct-drive operator features a variable-frequency drive that ensures a soft start and stop, and doesn't have any sprockets or chains to wear or replace.

Usage
These doors are constructed for continuous use and are warrantied up to 300,000 cycles (or two years). If you have an opening that only needs standard cycles, meaning less than 20 cycles per day, please consider our standard service or insulated product lines.


PERFORMANCE

Door Drive & Control System

The Extreme 300 Series Performance Door features our first intelligent control panel - the Apex™ SmartController. It features:

  • Plug-and-play connections between the motor, control panel, and standard sensors

  • LCD screen that walks user through:

    • Initial door commissioning

    • Electrically set limits

    • Status and error messages

    • Many common door adjustments

This door also comes with a compact direct drive operator with no roller chains or sprockets and an internal inertia brake for safety. It is IP54 rated, which is equivalent to NEMA 3/3S.


SIZES

Sizes

Service Door Curtain
Standard construction up to 24' wide, 16' high

Insulated Door Curtain
Standard construction up to 20' wide, 14' high

For openings that fall outside of the standard construction, please contact us.


MATERIALS & FINISHES

Standard Materials & Finishes



Extreme 300 Series Performance Doors come with a unique and lasting powder coat finish customized for high-cycle usage as standard. There are two material options for both the service and insulated curtain:

  • Galvanized steel:

    • Finished with a rust-inhibiting CycleShield™ finish in Gray, Tan or White

    • The CycleShield finish is exclusively for our High Performance Doors. The base coat is consistant with ASTM A653, and is finished with a baked-on polyester powder coating. CycleShield is:

    • Friction and wear-resistant for high-cycle applications

    • Rust inhibiting and resistant to acids, alkalis and oils at normal temperatures

    • Recommended for exterior, corrosive and/or abrasive environments

    • Available as an option in a palette of more than 180 standard RAL colors

  • 300 series stainless steel with a #4 finish

Finish/gauge availability varies. Contact us for technical details and additional options.
