GHQ F-24

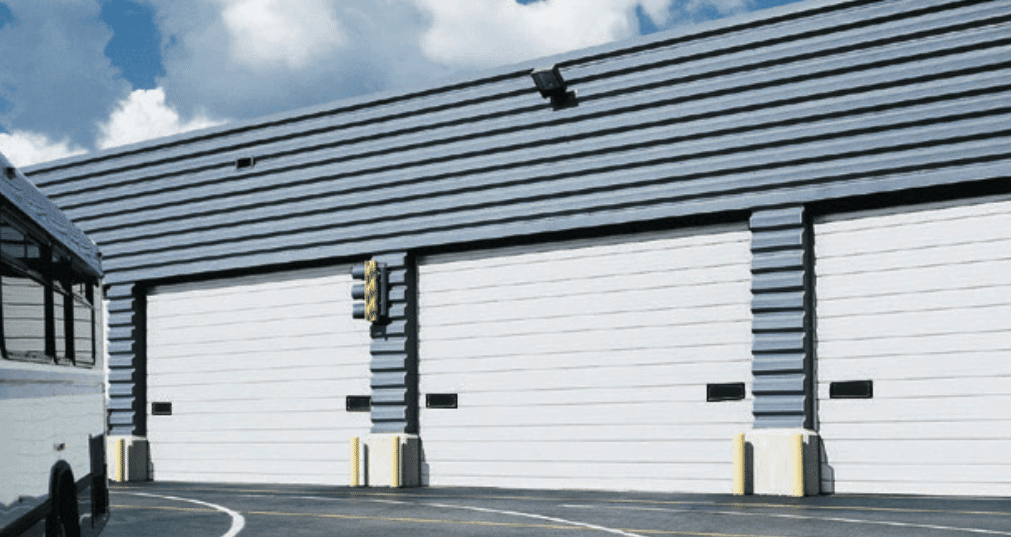

A simple solution for typical commercial and industrial door applications, the GHQ F-24 commercial sectional ribbed door provides Garage Headquarters quality and durability in a limited selection of sizes, features, and options.

DURABLE CONSTRUCTION

Constructed with stainless steel rivets and roll-formed tongue-in-groove meeting rails for maximum structural integrity, GHQ F-24 doors are built to withstand heavy use.

DECREASED ENERGY COSTS

GHQ F-24 doors help you reduce energy costs with a U-shaped, vinyl bottom weatherseal secured by a sturdy aluminum retainer.

JAMB SEAL

Jamb seal also helps to reduce air infiltration and decrease energy costs by sealing the side of the door when closed. Available in EPDM rubber or flexible vinyl flap.

INSULATION

GHQ F-24 doors are available with energy-saving insulation. Choose from white impact-resistant (shown) or steel (26, 24 or 20-Gauge) back covers.

ENDURACOTE™

The EnduraCote™ hardware system comes with springs, track, and hardware that are powder coated to provide a clean, finished look and maximum protection against rust.

REMOVABLE CENTER POSTS

Carry-away, swing-up options available for extra-wide openings. Ideal for agricultural or airplane hangar applications.

CARBON MONOXIDE VENT

Allows you to channel fumes to the outside when the GHQ F-24 door is closed. Available in a variety of sizes.

RUGGED HARDWARE AND SPRINGS

The GHQ F-24 door comes packaged with the right combination of hardware, track, and springs to precisely match your door’s size and application and provides years of reliable service.

HEADER SEAL

Flexible, EPDM rubber flap header seal on GHQ F-24 doors reduces air infiltration and energy costs by sealing the top of the door against the header.

SECTION JOINT SEAL

GHQ F-24 doors are available with a neoprene foam rubber section joint seal to help prevent airflow between sections.

SECURE LOCKS

In applications where control and access are important, choose from a variety of locking options to help keep your building secure. Locks come in both inside and outside variations.

CHOICE OF WINDOWS

Select either 24″ x 8″ or fullview window sections. Choose from a variety of glass, insulated glass, acrylic, and polycarbonate styles to suit any application.

CUSTOMIZED TRACK AND HARDWARE

Track systems are supplied to fit special clearances, inclines, or contour applications. Hardware and track systems can be designed to fit any need. Additional trussing is available for special wind loading applications. A QuikClip™ pre-assembled track option is also available.

HIGH-CYCLE COUNTERBALANCE SYSTEM

For reliable operation in high traffic areas, choose high-cycle torsion springs with 25,000, 50,000, or 100,000 cycle life. For reduced maintenance and ultra-smooth operation in heavy-use applications, choose a weight counterbalance system.

SECTIONS

Construction: 1 or 2-Layer Pan
Material: Steel
Surface Texture: Smooth Ribbed
Section Joint: Tongue and Groove
Section Thickness: 2″
Gauge: Steel; Exterior: 24-Gauge Nominal
Stiles: End Stiles: 16-Gauge; Center Stiles: 16-Gauge
Insulation: Optional Expanded Polystyrene with Impact-Resistant Covers (7.7 R-value)
Seals: Bottom Seal (3″, 4″ EPDM, or 3″ Yellow); Optional Header Seal
Trussing: Wind Load: 20 P.S.F. Tested/13.3 P.S.F. Design Load (standard); Material: U-bar (18-Gauge or 20-Gauge)
Panel Configuration: N/A
Color: White or ColorWave™ with 1,500 Sherwin-Williams® colors.
Windows: 24″ x 8″ or full-view section; glass: choose from a variety of standard or insulated glass, acrylic, and polycarbonate styles to suit any application

COUNTERBALANCE SYSTEM

Type: Torsion Spring
Springs: Spring Inner Diameter: 2-1/4″, 3-1/2″ or 5-1/2″;
Shafts: Tube or Solid (D-Shaft, 1″ Keyed)
