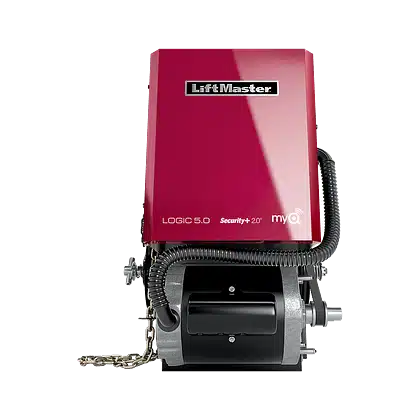

Liftmaster® H

HOISE OPERATOR - LOGIC 5.0

Optimal for industrial applications with larger sectional overhead doors.
Rated duty cycle: 25 per hour; Up to 90 cycles per day.
Side mounts to the wall for vertical or high-lift doors.
Rolling doors and grilles. Wall or hood mounts.

DOWNLOAD THE FREE myQ® APP:

FEATURES

Business Connectivity

Monitor and Control
myQ Smart Facility Access is a cloud-based software solution that delivers real-time data and analytics to a commercial facility.

myQ Dock Management
Analyze the load, turn and dwell time at each dock in the facility and make data-driven decisions that allow you to maintain insight from the perimeter to the dock space.

Real-time Alerts
Stay up-to-date and in control of facility access points with real-time notifications to help improve efficiency and productivity while reducing expenses.

PERFORMANCE

Powerful
Performance

H-style operators include a door-level chain hoist to ease manual operation in an emergency or power outage. The operators are typically mounted to the wall when used with larger sectional overhead doors with vertical or high lift and mounted to the wall or the front of the hood when used with rolling doors and grilles. H operators are attached to the door jackshaft to indirectly drive the door.

Multiple Power Options
Available in 1/3, 1/2, 3/4, and 1 HP

Customizable Voltage
To meet job requirements

Dual Voltage Connections
Single-phase: 115V and 230V
3-phase: 208V, 230V and 460V
Discrete model: 575V

SAFETY AND SECURITY

Safety and Security

Security+ 2.0® safeguards your household - with every click a new code is sent to the garage door opener so that the door opens only for you.

UL 325 requires all commercial door operators to be either constant pressure to close or be equipped with a primary external monitored entrapment protection device.

LiftMaster® is the leading brand of professionally installed commercial door operators and access control products for businesses worldwide. We are committed to quality products, innovative designs and comprehensive services which exceed our Customers’ expectations.

ACCESSORIES

myQ Accessories

INTERNET GATEWAY (828LM)
Enables owners of commercial door operators to connect their operators to the Internet to monitor, control and receive alerts regarding status of each door.

DOOR AND GATE MONITOR (829LM)
Enables monitoring and closing within a facility of up to four commercial doors.

REMOTE LIGHT CONTROL (825LM)
Operates a plug-in light using a commercial door operator remote control, or the LiftMaster Internet Gateway using your smartphone or computer.

Entrapment Protection Devices

MONITORED DUAL-SIDED PHOTO EYES (CPS-OPEN4)
Provides primary entrapment protection on doors up to 45ft wide. NEMA 4X rated.

MONITORED OPTICAL EDGE SYSTEM (OES)
Thru-beam infrared optical sensors, premium rubber door edge that can be cut to length for exact fit.

Optional Add-Ons

3-BUTTON REMOTE CONTROL (893MAX)
Provides Security+ 2.0TM Technology and compatible with multiple radio technologies. Includes open, close and stop functionality.

MUSHROOM BUTTON CONTROL STATION (02-401M)
Provides single button to activate opening one or more commercial doors.

RED/GREEN TRAFFIC LIGHT (RGL24LY)
Indicates when a commercial door reaches the open position. Provides assurance of safe entering and exiting of the facility, reducing the potential for costly accidents. (TLS1CARD is recommended)
