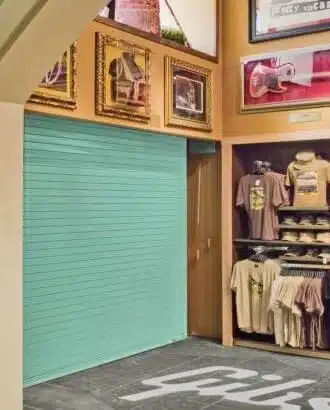

Thermiser Max Insulated Rolling Door
Our Thermiser Max® Insulated Rolling Door is the most energy-efficient insulated rolling door available today, with the certifications to prove it. IECC, ASHRAE, LEED – this door has it all while decreasing air infiltration by 94% versus standard products. And, because we care about the environment as much as you do, the door can help you achieve up to 38 points in five LEED certification credit categories.
Overview
Our Thermiser Max Insulated Rolling Doors meet ASHRAE® 90.1 and IECC® (International Energy Conservation Code) 2015 Section C402.5.2 Air Infiltration requirements with an independently tested value of less than .3 CFM/FT2.
The doors provide all the benefits of our standard rolling door offering, plus:
Climate Control: Our exclusive patent-pending sealing system, *(with thermally broken guide assemblies and a lintel seal), together with the insulated curtain, provides impressive reductions in air infiltration and thermal transference
Security: Our insulated curtain design features two layers of metal with foam in between, making the door stronger and more secure
Sound Reduction: The Sound Transmission Class (STC) rating is up to 32 for the entire assembly, as tested per ASTM E90 (with a complete, operable assembly)
These doors are constructed for daily use and can withstand operation of up to 20 cycles per day – that's 50,000 cycles for the lifetime of the door.
If your requirements call for more than 20 cycles per day, high cycle construction is available.
Configuration
Double skin interlocking roll formed interior and exterior metal slats:
R-value of 8.0 as calculated using the ASHRAE Handbook of Fundamentals
Slats are filled with 7/8" thick closed cell pressure foamed in place urethane insulation:
Flame Spread Index of 0
Smoke Developed Index of 10 as tested per ASTM E84
CFC-free process with an Ozone Depletion Potential rating of 0
Meets foam plastic insulation requirements of the 2012 IBC®, section 2603
Standard Finishes
The Thermiser Max comes standard in three finishes:
Galvanized Steel
Stainless Steel
Aluminum
Contact us for detailed information on colors/finish/gauge availability or special requests.
Available Operators
Our doors can open by motor, chain, hand-crank, or push-up operation, depending on size, weight and/or frequency of operation.
Model MG
A medium duty operator for doors that will cycle less than 20 times per day
Model SG
A super duty, full logic operator for larger doors or doors that may periodically cycle more than 20 times per day
